TWTL-Clutch Series
The TWTL-CLUTCH Series is an innovative heavy-duty castor engineered for hospital beds, equipment trolleys, and demanding applications across medical and industrial environments. Designed for exceptional strength and smooth mobility, the series incorporates a unique clutch-operated braking system that keeps the wheel locked by default. Pulling the clutch releases the brake for movement, while releasing it automatically re-engages the brake to ensure secure positioning. This intuitive mechanism provides enhanced control, safety, and ease of operation in critical applications.
Features
◉ Innovative Heavy-Duty Design for Medical and Industrial Applications
◉ Unique Clutch-Operated Braking Mechanism
◉ Wheel Remains Locked by Default for Enhanced Safety
◉ Automatic Brake Engagement for Secure Positioning
◉ Smooth and Stable Mobility Under Load
◉ Enhanced Control and Ease of Operation
◉ Reliable Performance in Critical Use Conditions
◉ Durable Construction for Long Service Life
◉ Ideal for Hospital Beds and Equipment Trolleys
| No. |  |  |  |  |  |  |  |
|---|---|---|---|---|---|---|---|
| Model No. | Wheel Dia | Wheel Width | Total Height | Piller Fitting | Piller Hole Height | Swivel Radius | Load Capacity |
| TWTL-CW-100-B-PI | 100mm | 70 | 117 | 22,28 | 19 | 109 | 50 |
| No. | | | |  |  | | |
|---|---|---|---|---|---|---|---|
| Model No. | Wheel Dia | Wheel Width | Total Height | Thread Fitting | Thread Hex | Swivel Radius | Load Capacity |

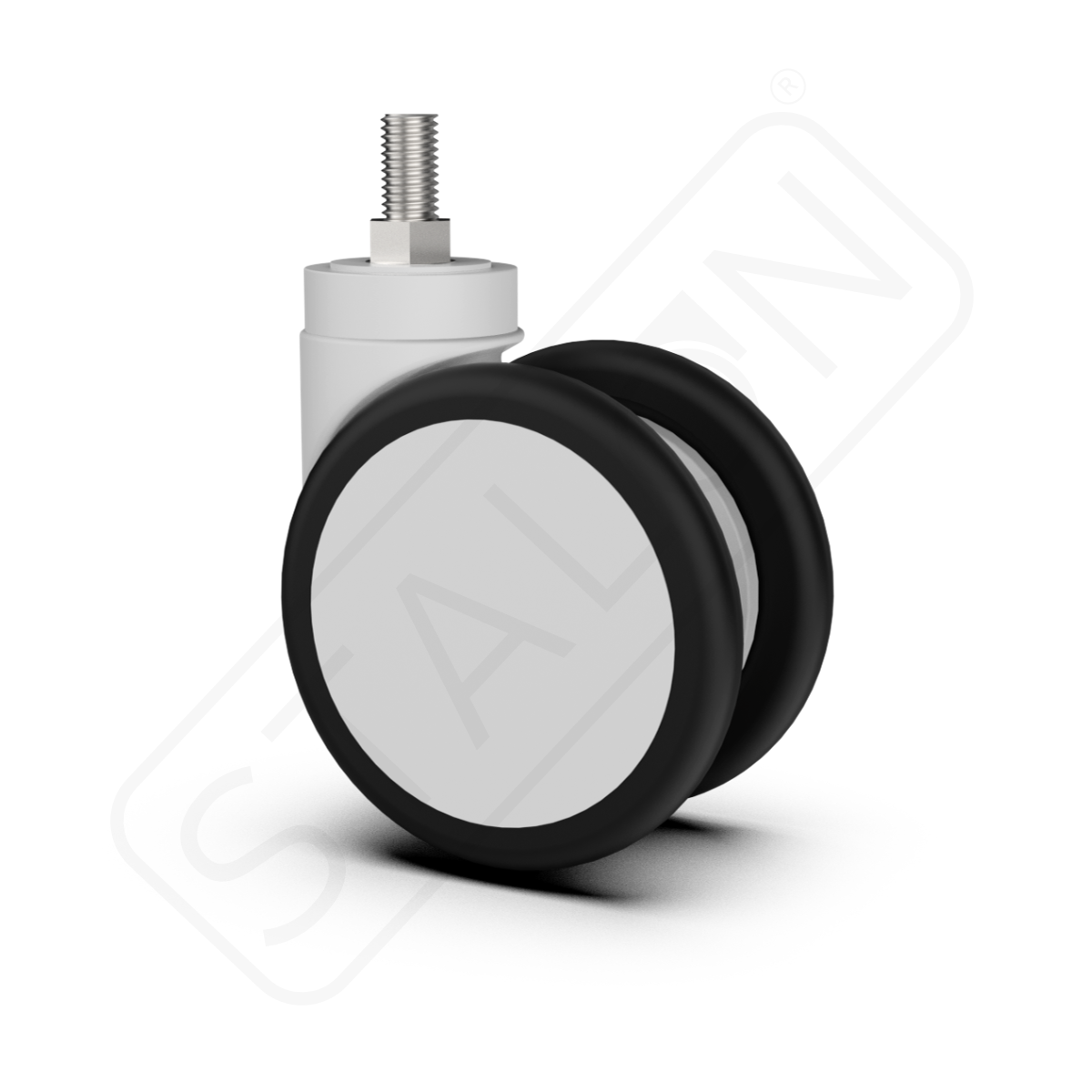

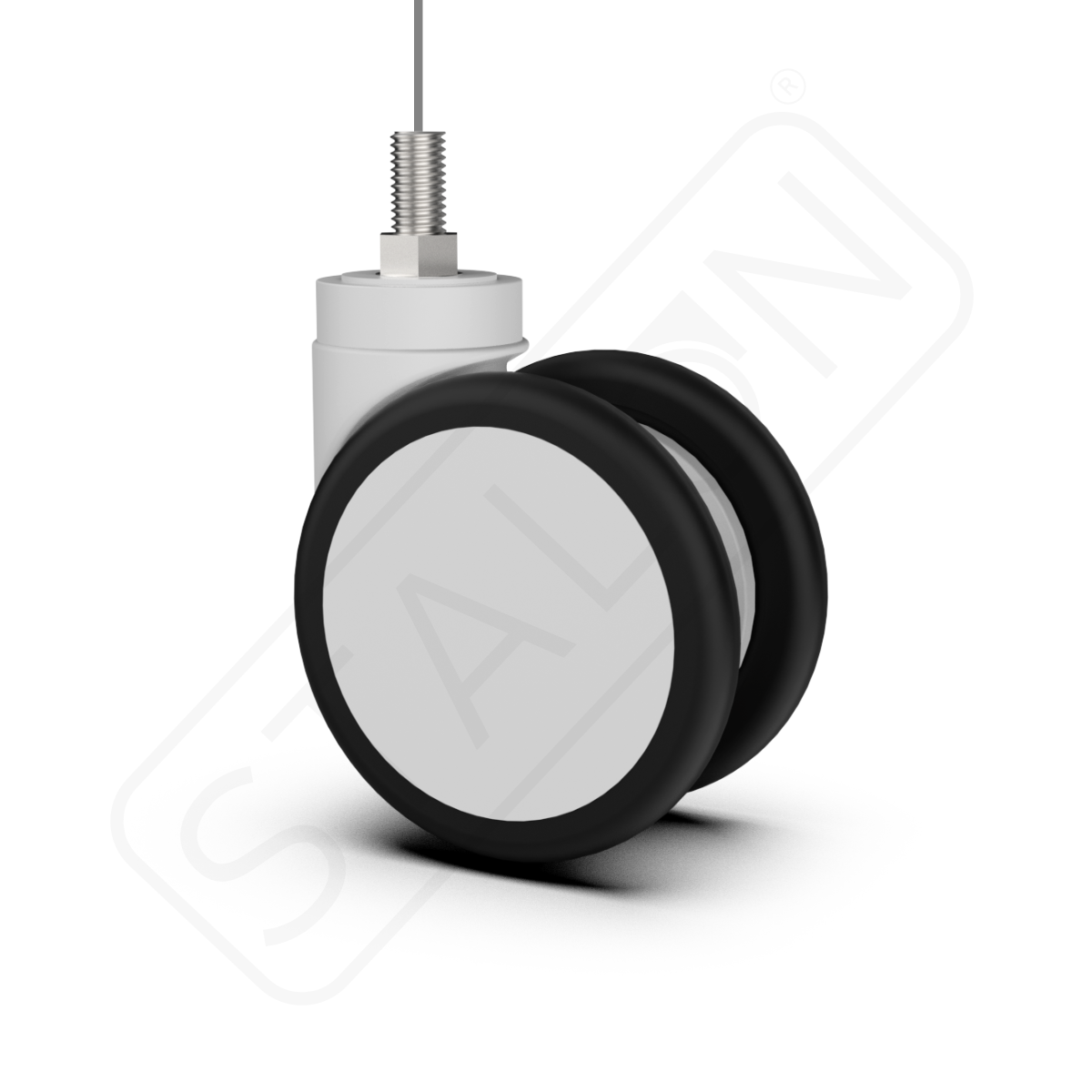

| TWTL-CW-100-B-TH | 100mm | 70 | 127 | D12 | 22 X 10 | 109 | 50 |
| No. | | | |  |  | | |
|---|---|---|---|---|---|---|---|
| Model No. | Wheel Dia | Wheel Width | Total Height | Plate Fitting | Hole to Hole | Swivel Radius | Load Capacity |
| TWTL-CW-100-B-PL | 100mm | 70 | 147 | 92 X 75 | 51 X 67 | 109 | 50 |
