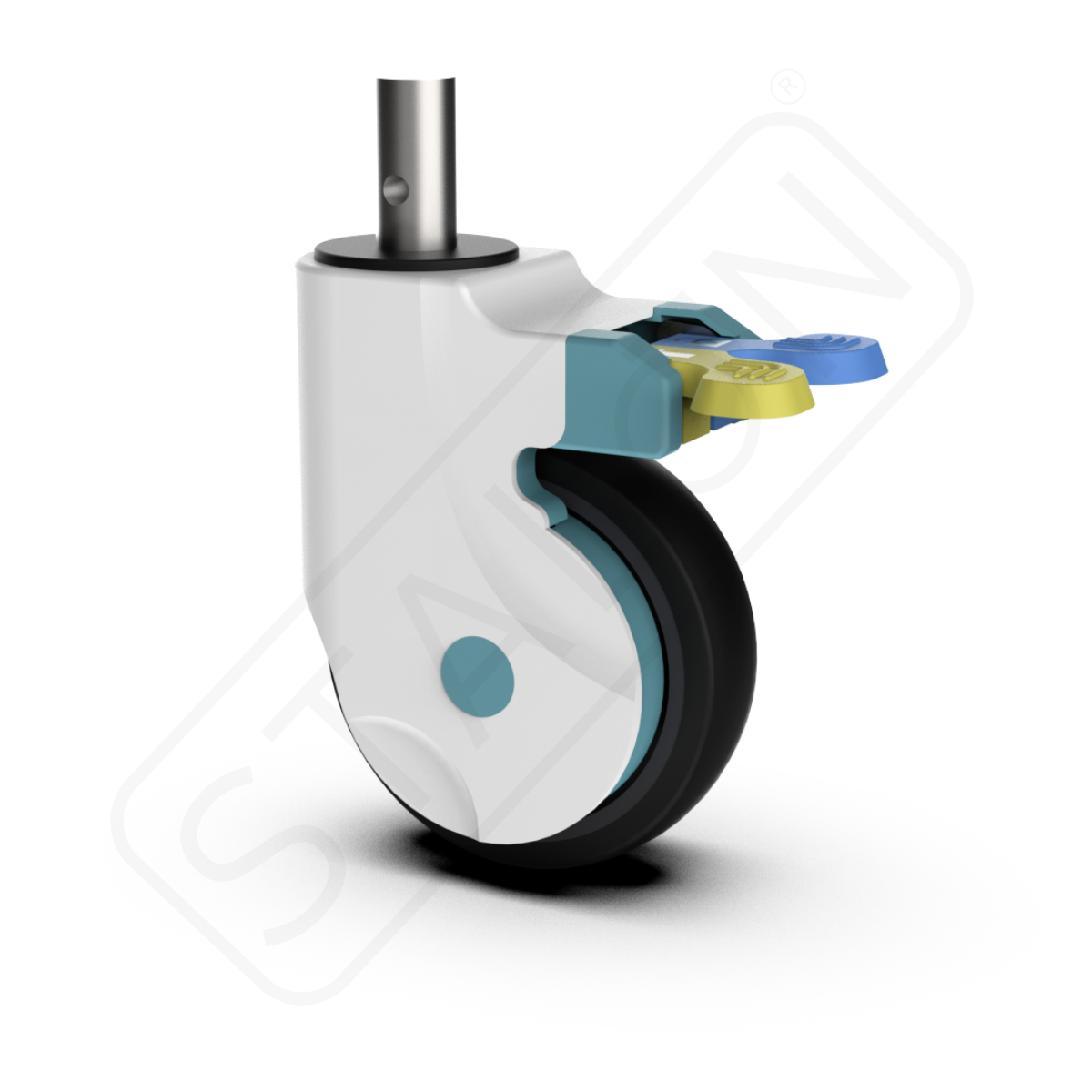

ABS-X Duo Series
The MSX Dual Series is a next-generation heavy-duty castor engineered for hospital beds and critical medical equipment. Built with a robust MS clamp and a one-piece ABS cover, the series eliminates the common issue of cover opening under impact or heavy loads, ensuring superior durability and long-term reliability. Featuring an innovative dual-pedal braking system, the yellow pedal locks swivel rotation while the blue pedal locks both wheel and rotation, providing flexible operation based on user requirements. Designed for strength, safety, and precision, the MSX Dual Series delivers stable and dependable performance in demanding healthcare environments.
Features
◉ Next-Generation Heavy-Duty Design for Critical Medical Applications
◉ Robust MS Clamp with One-Piece ABS Cover Construction
◉ Enhanced Resistance to Impact and Heavy Loads
◉ Superior Durability and Long-Term Reliability
◉ Innovative Dual-Pedal Braking System
◉ Yellow Pedal for Swivel Lock Function
◉ Blue Pedal for Total Lock of Wheel and Rotation
◉ Flexible and User-Friendly Brake Operation
◉ Stable and Dependable Performance in Demanding Environments
◉ Ideal for Hospital Beds and Critical Medical Equipment
| No. |  |  |  |  |  |  |  |
|---|---|---|---|---|---|---|---|
| Model No. | Wheel Dia | Wheel Width | Total Height | Piller Fitting | Piller Hole Height | Swivel Radius | Load Capacity |
| ABS-XD-125-B-PI | 125mm | 32 | 170 | 22,28 | 19 | 105 | 100 |
| No. | | | |  |  | | |
|---|---|---|---|---|---|---|---|
| Model No. | Wheel Dia | Wheel Width | Total Height | Thread Fitting | Thread Hex | Swivel Radius | Load Capacity |

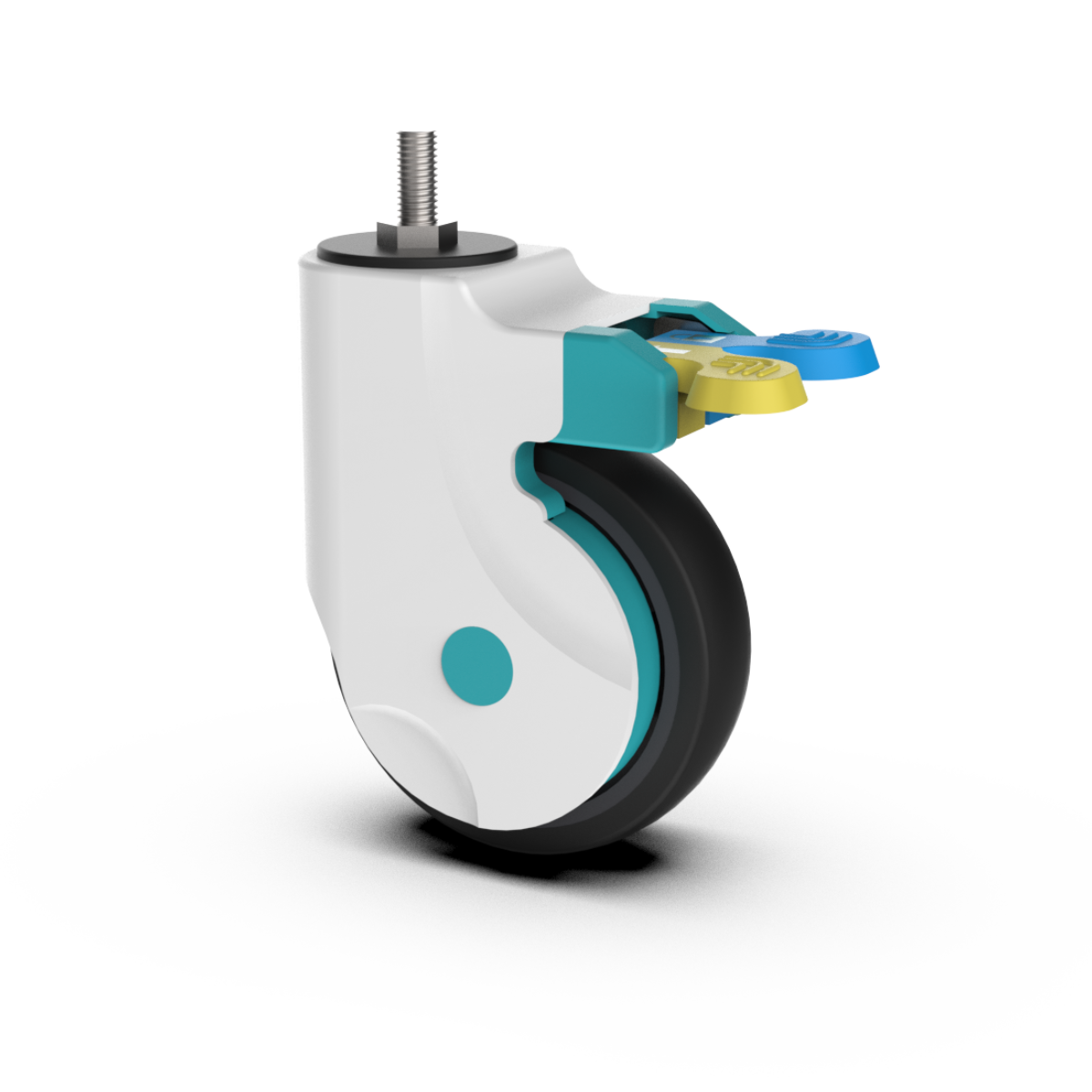

| ABS-XD-125-B-TH | 125mm | 32 | 176 | D12 | 19 X 6 | 108 | 100 |
| No. | | | |  |  | | |
|---|---|---|---|---|---|---|---|
| Model No. | Wheel Dia | Wheel Width | Total Height | Plate Fitting | Hole to Hole | Swivel Radius | Load Capacity |

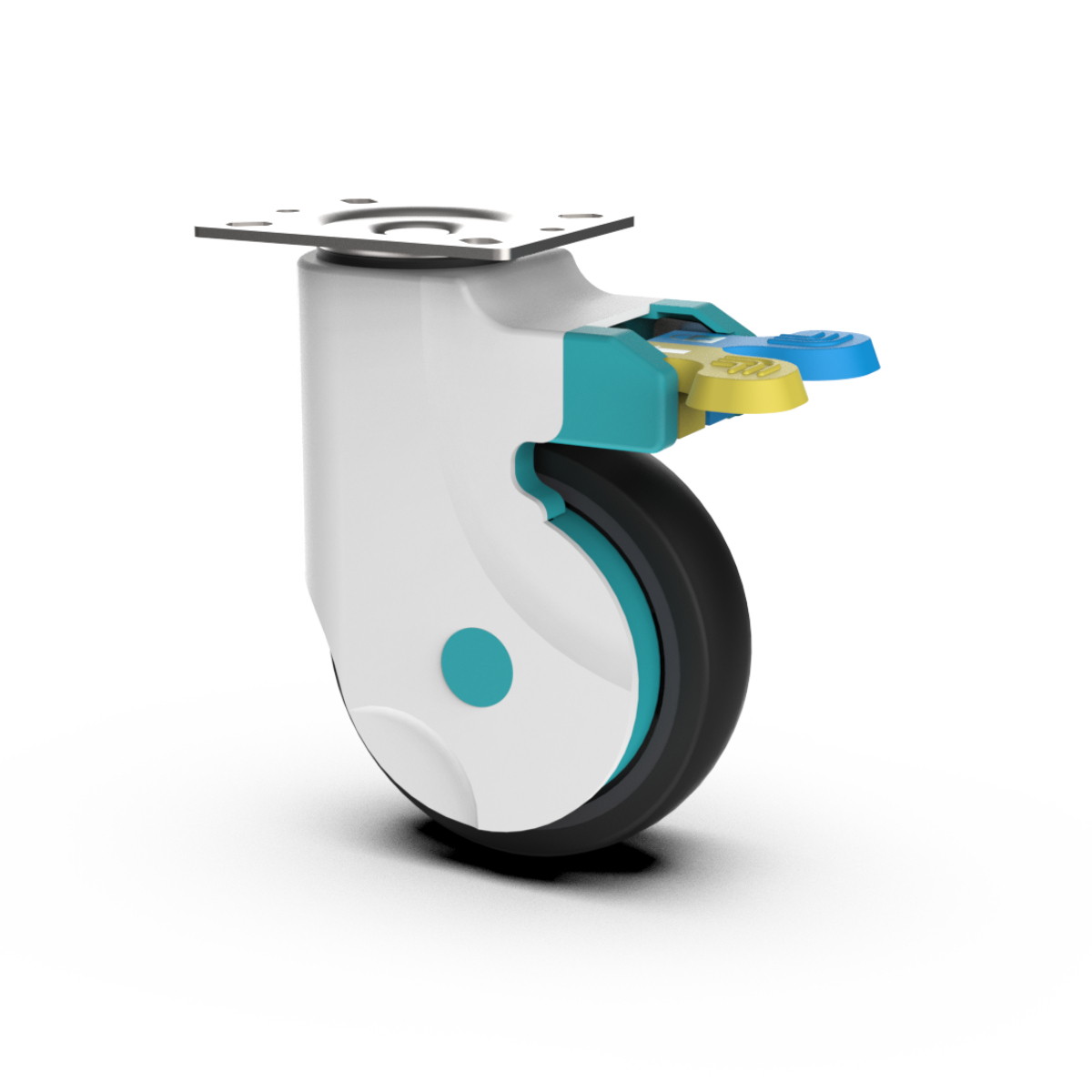

| ABS-XD-125-B-PI | 125mm | 32 | 200 | 92 X 75 | 51 X 67 | 108 | 100 |
